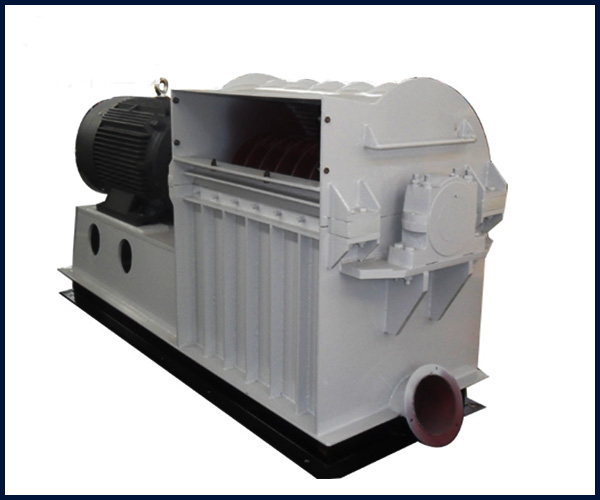

Multifunctional Hammer Mill
Product Overview:
Multifunctional Hammer Mill is the most ideal grinding equipment for all kinds of wood chips, wood shavings, grass, straw, stalk, rice husk, palm fiber and so on
Features

1.when crush plastic, PVC, rubber etc ,it adopts water cooling structure , avoiding the damage to spare parts due to long time working friction .except biomass , it also can crush animal feed materials such as soybean, maize, cereal and fertilizer materials from animal manure , chemical etc which is mainly used in wood factory, feed factory, organic fertilizer factory, and so on.



2.we will install fit hole screener sieve at the wood hammer mill bottom according to materials humidity .if raw materials were high humidity , then we will install 10-30mm hole screener even no screener at the bottom, if dry, then will install 2-4mm hole screener, which means will outlet smaller than 2mm fine powder.

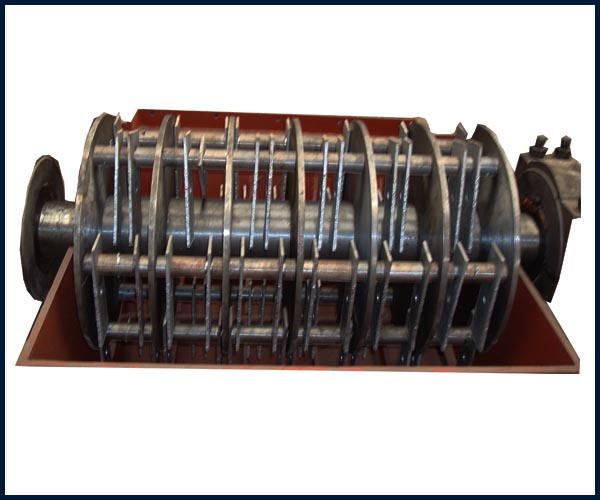

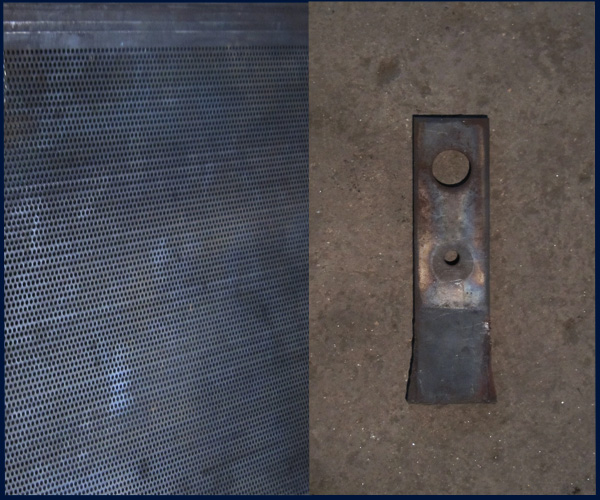

3. The wood hammer mill key spare parts such as hammers and screener are made by our CNC systems, through high technical heat treatment, standing out from other suppliers is that we could ensure the parts high precision and good quality.

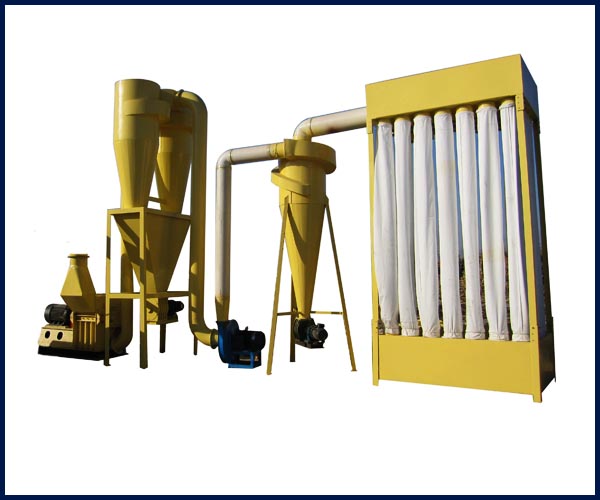

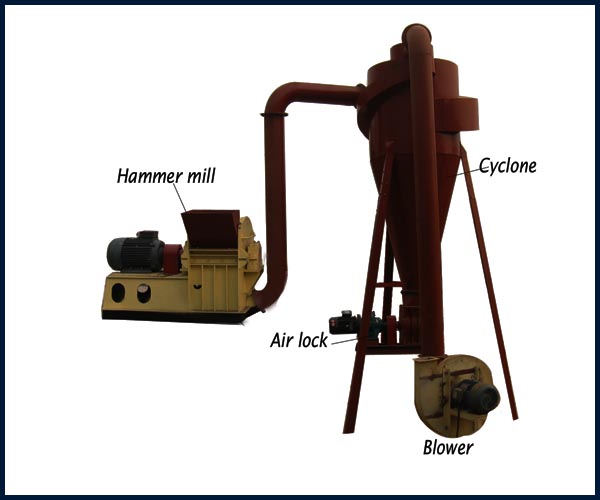

4.wood hammer mill works connect with air fan and cyclone, air lock ,dust filter ,after crushed ,the powder will outlet from cyclone bottom, which is very environmental protection and easy to collect dust.

Technical


Model

TCFS40

TCFS50

TCFS65*27

TCFS65*55

TCFS65*75

Rotor Diameter(mm)

     400

500

600

650

650

Capacity (T/H)

0.3-0.8

0.5-1

0.5-2

1-3

3-5

Hammer Qty (pieces)

13

16

24

48

72

Main Power (kw)

7.5

15

22

37-55

55-75

Dimension(L×W×H)

1310×800×1070

1380×800×1010

1500×1000×1100

1700×1000×1100

2100×1000×1100

Weight (t)

0.27

0.45

1.1

1.5

1.9
