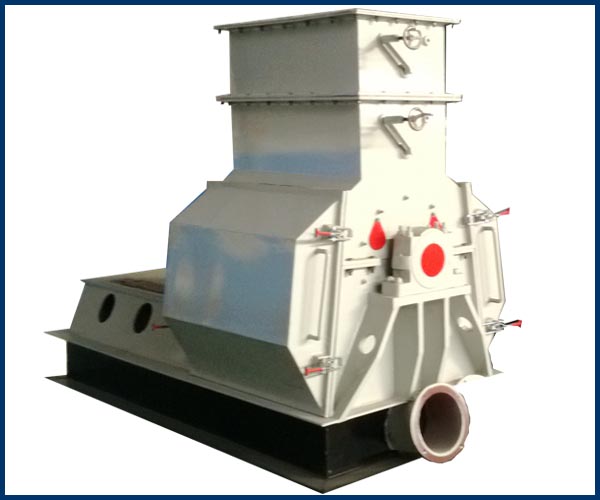

There are symmetrical operation door and safety interlock in both side. The operation doors are helpful to renewal thieve plate and hammers, also helpful for checking up and debugging. Feed inlet is placed in the top of crusher which can be matched with all kind of feed equipment.
There is one piece of sieve plate installed at the bottom of wood hammer mill. The size of crushed material could be changed by changing different sieve plate with different hole. Normally, the finished size is from 2mm to 30mm adjustable.Spare parts of hammers and sieve plate are made by our CNC system, through high technical heat treatment.
This series hammer mill has reasonable structure, sturdy and durable using, safety and dependable, simple installation, easy operation, tiny vibrating, high efficiency etc. advantages, which is the most ideal grinding equipment of all kinds of wood chips, wood shavings, grass, straw, stalk, corn, weeds, soybean, PVC foaming board, rubber and so on.
|
Model |
Capacity (T/H) |
Power(kw) |
Weight (Kg) |
Dimension (mm) |
Hammer qty(piece) |
Note |
|
TCGX65X27 |
1-3 |
22 |
860 |
1310×800×1070 |
24 |
Φ4, can be adjust |
|
TCGX65X55 |
2-4 |
37 |
1350 |
1380×800×1010 |
48 |
Φ4, can be adjust |
|
TCGX65×75 |
3-6 |
55 |
1520 |
1900×800×1100 |
72 |
Φ4, can be adjust |
|
TCGX65*100 |
5-8 |
90 |
1830 |
2100×1700×1500 |
72 |
Φ4, can be adjust |
|
TCGX130*55 |
6-10 |
160 |
2300 |
2100×1000×1100 |
160 |
Φ4, can be adjust |
