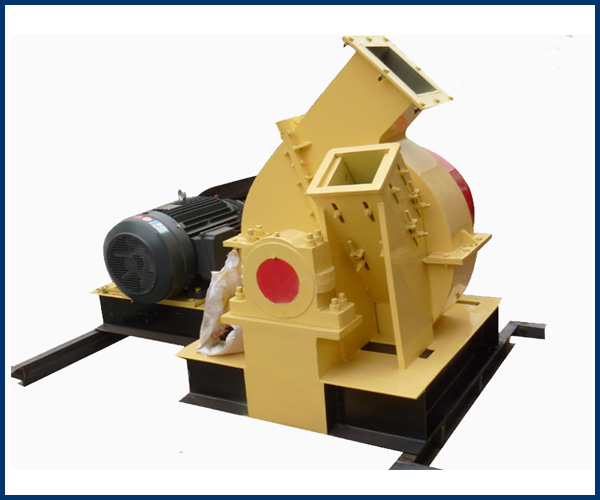

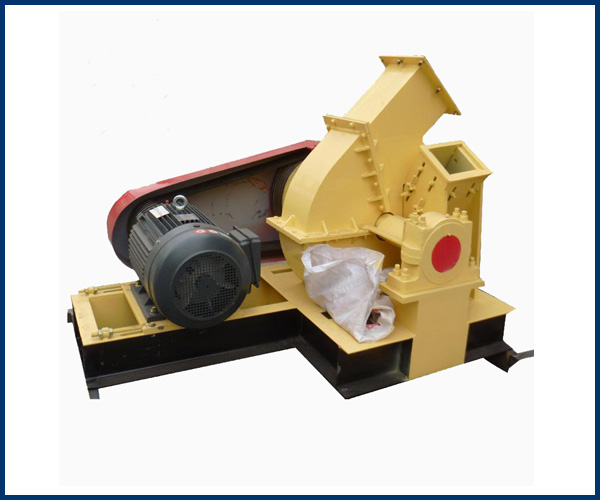

Disc wood chipper
Product Overview:
TCPX Disc Wood chipper is mainly used to crush raw wood logs into 1-3cm wood chips, the thickness of last chips is 1.5mm-3mm, length and width is 10-30mm. It also can cut long bamboo or sugarcane into small chips, the difference between drum chipper is that after crushed by disc wood chipper, the outlet chip dimension is more even.
leave a message Download
Features

The disc wood chipper has two feeding type: one is to feed logs from top ,second is to feed from side belt conveyor—changeable speed feeding logs. For outlet discharging chips type , there are two ways , one is the outlet is from the other top door, the other is the outlet is from bottom, both structure and operating are very easy.

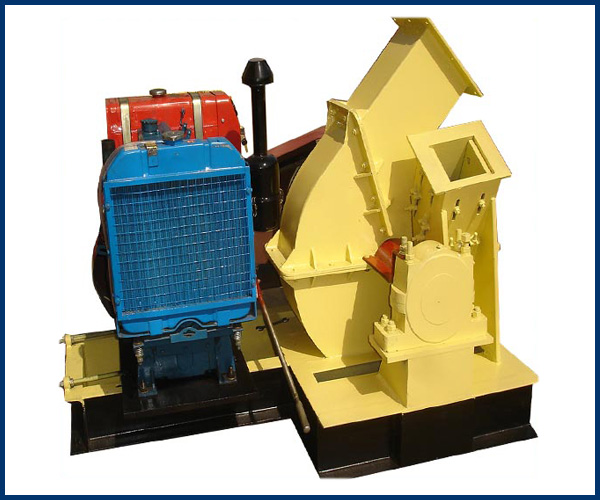

It can be driven by both diesel engine and electric motor, very easy to be operated.

Technical

Model

TCPX15-80

TCPX35-160

TCPX45-250

Feeder Size(mm)

230*500

300*680

450*800

Max dia Infeed(mm)

150

350

450

Power(kw)

30

55

90-110

Knife(pcs)

3

6

9

Chip Size(mm)

10-30

10-30

10-30

Cpacity(T/H)

1-2

2-4

6-8
