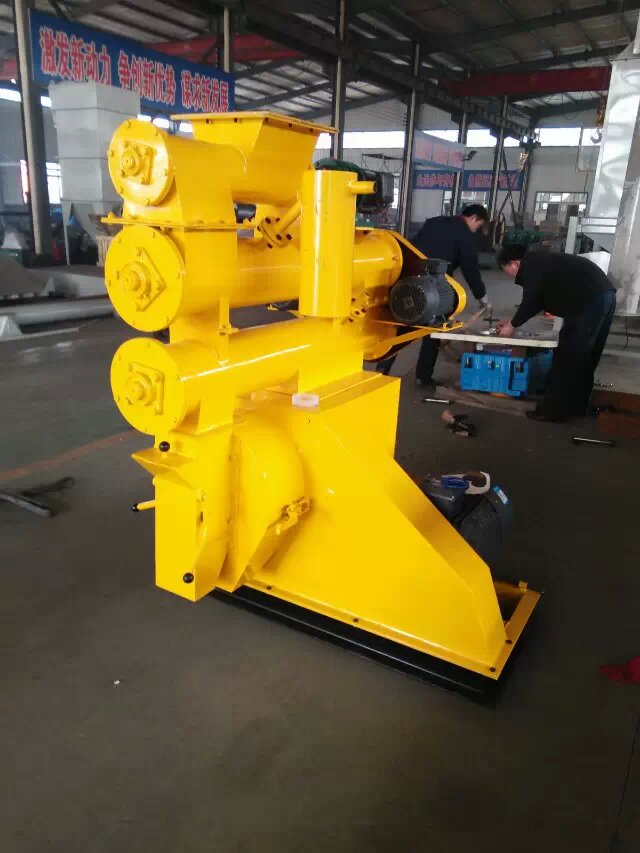

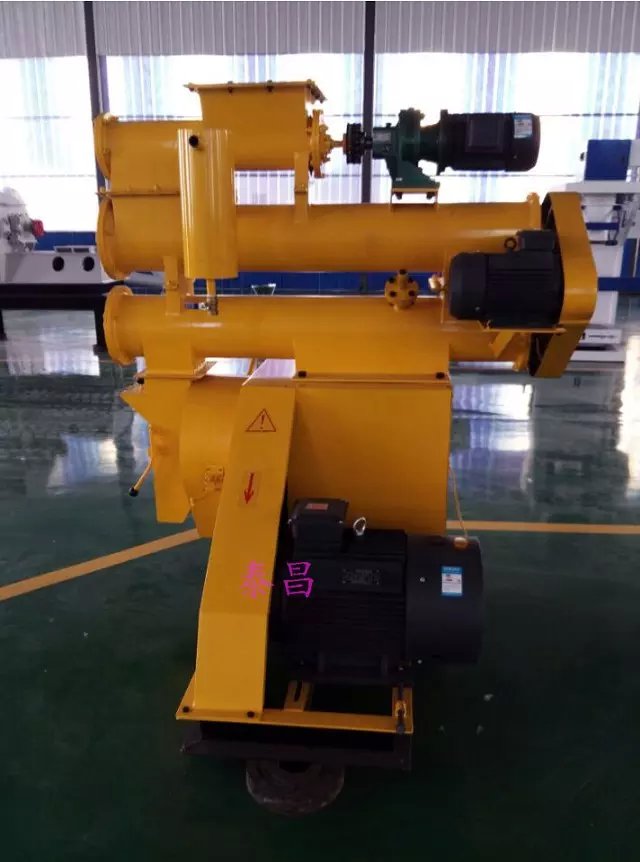

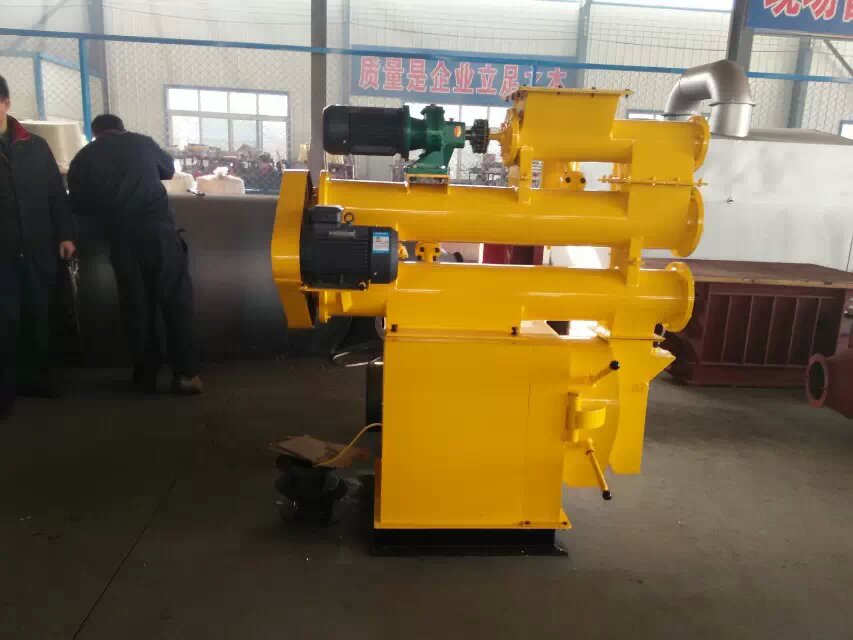

Ring Die Pellet Mill Machine
what is ring die pellet press machine?
Ring die pellet mill machine is another popular type. they have higher quality than flat die pellet machine,In contrast to flat die pellet press machines, ring die pellet mill are more often used for commecial and big capacity plant like chicken feed,pig feed,duck feed,fish feed,cattle feed,also for manufacturing wood pellets and biomass pellets. The finished feed pellets have a smooth surface and easy to digest for animals. As the die’s name suggests, the ring die has a wide cylindrical shape and is mounted vertically, rather than flat,Ring Die pellet macine adopts mature technology to make high quality animal feed pellet with large-scale production. Based on the outstanding features of its high throughput, low consumption.if you would like a small production capacity,we advise to use flat die pellet mill.
ring die pellet press machine features
* ring die pellet mill adopt three layer jacket conditioner, the material can be fully cooked, meet special needs and ensure quality of final aquatic feed.
* Main driving adopts high precision gear transmission , the capacity can be improved about 20% compared to the belt transmission, and with low energy-consumption.
* Multiple aperture ring die for choice, excellent craft of ring die with long service life to make smooth and high quality aquatic feed pellets.
* The international advanced spring coupling device is of novel and compact structure, safety, reliable, low noise and low failure rate.
* Applicable for large-scale production of high quality aquatic feed pellets,wood pellets and biomass pellets
Specification of Ring Die Pellet Mill
|
Model |
Output |
Power |
Feeding power |
Conditioner power |
die inner diameter |
Pellet Diameter |
|
TCZL-250 |
0.6–1 t/h |
22kw |
0.55 kw |
2.2 kw |
250 mm |
2–12mm |
|
TCZL-300 |
1–2t/h |
37kw |
0.75kw |
2.2kw |
300 |
2–12mm |
|
TCZL-320 |
2–3 t/h |
37 kw |
0.75 kw |
2.2 kw |
320 mm |
2–12mm |
|
TCZL-350 |
3–4 t/h |
55 kw |
0.75 kw |
2.2 kw |
350 mm |
2–12mm |
|
TCZL-400 |
4–5 t/h |
75 kw |
1.5 kw |
2.2 kw |
400 mm |
2–12mm |
|
TCZL-420 |
5–7 t/h |
90 kw |
1.5 kw |
5.5 kw |
420 mm |
2–12mm |
