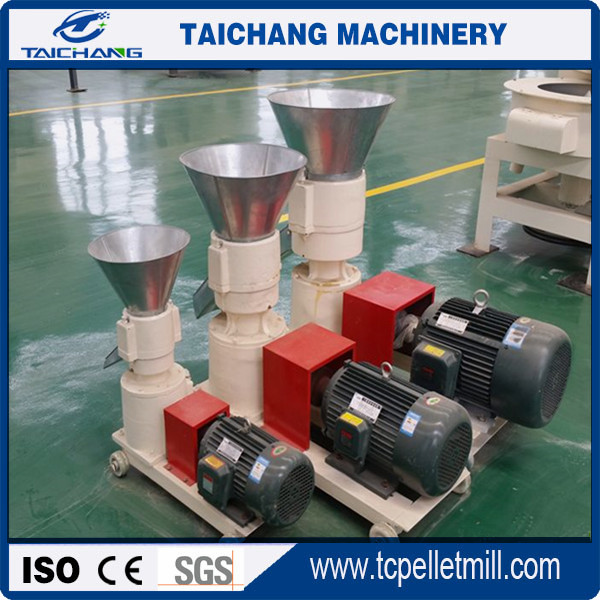

this type small pellet mill has not got a bigger production capacity, its capacity is just 70–100kg/h, which can also be used in small poultry farm or used at home to make pellets. the principle of the small pellet mill is circular motion on a plate die with high qualified alloy steel roller through a special treatment, spindle and flat die by the action of the friction between the roll rotation and plate die, the material between the roller and template will go into gelatinization so protein coagulation changes, then pellets produced by this home use pellet mill discharges from the die hole and sent out by the rejection trays outside the machine, particle length can be adjusted through the incision on the small scale pellet mill.

Specification of small pellet machine

Model:TCZL120 Flat die pellet machine

Power:3kw both single-phase and three-phase are ok.
Capacity:70–100kg/h
Shaft speed: 320r/min
Outsize:1150X400X550mm

Weight:110kg
Raw materials:grains powder,grass meal,alfalfa,straw meal,etc
Moisture content:10–15%

Features of small pellet machine

＊ small size,simple structure and easy to operate
＊ high quality and cost performance
＊ suitable for home use
＊ the material of corn kernel can be processed without water
＊ Dry-processing, final pellets are hard and smooth, internal improvement, can improve digestion and absorption of nutrients

Any interest about the pellet machine,please contact us or leave message without any hesitate.
